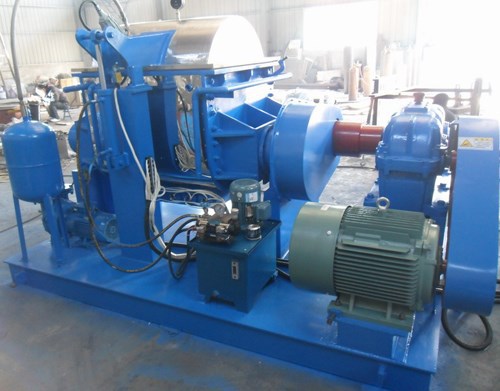

Video Technical Support CMC Double Z Blade Sigma Rubber Kneader Mixer

Name: Video Technical Support CMC Double Z Blade Sigma Rubber Kneader Mixer
Brand: MIXER
Price: 25 USD

Buy cheap Video Technical Support CMC Double Z Blade Sigma Rubber Kneader Mixer product

Mixer Type : Screw

Barrel Volume (L) : 500 L

Material Processed : Plastics, Food

Max. Loading Volume (L) : 300 L

Max. Loading Capacity : 300L

Weight (KG) : 6000 KG

Material : SUS304, SUS316

Condition : New

Product Type : Other

Application : Viscous Fluid

Additional Capabilities : Other

Place of Origin : Jiangsu, China

Brand Name : MIXER

Voltage : 380V

Dimension(L*W*H) : according to the type

Power (kW) : 45 kW

Warranty : 1 year

Key Selling Points : Energy saving

Applicable Industries : Manufacturing Plant

Showroom Location : None

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 5 years

Core Components : Motor, Gear, Pressure vessel, Engine

Kneader : double blade type sigma kneader

Mixer : Z blade type sigma mixer

Power(W) : 18.5 KW

After Warranty Service : Video technical support

Certification : CE,ISO

Price : $25,000.00/sets >=1 sets

Contact Now

Product Description

cmc double z blade sigma kneader mixer

Sigma Kneader/Sigma Mixer is widely used for: plastic, rubber, silicone,CMC,BMC, soap,paint, printing ink, basoid, carbon, food stuff,etc, Mixing room and agitating rotor are all made by stainless steel, The jacket of mixing room can be designed into electric heating, steam heating, steam heating or water cooling. Discharge ways include hydraulic tilt,, screw extruder and botton valve discharge etc.

Specification

Standard Sigma Kneader/Mixer:

Model	Total Volume(L)	Working Volume(L)	Motor Power (KW)	Discharge way	Heating mode
NH - 50	50	30	2.2 ~ 4	Hydraulic tilt	Steam/hot water
NH - 100	100	60	3 ~ 5.5	Hydraulic tilt	Steam/hot water
NH - 200	200	120	5.5 ~ 7.5	Hydraulic tilt	Steam/hot water
NH - 300	300	180	7.5 ~ 11	Hydraulic tilt/bottom drop	Steam/hot water
NH - 500	500	300	11 ~ 18.5	Hydraulic tilt/bottom drop	Steam/hot water
NH - 1000	1000	600	18.5 ~ 30	Hydraulic tilt/bottom drop	Steam/hot water
NH - 1500	1500	900	22~37	Hydraulic tilt/bottom drop	Steam/hot water
NH - 2000	2000	1200	37~55	Hydraulic tilt/bottom drop	Steam/hot water
NH - 3000	3000	1800	55~90	Hydraulic tilt/bottom drop	Steam/hot water
NH - 4000	4000	2400	75~110	Hydraulic tilt/bottom drop	Steam/hot water
NH - 5000	5000	3000	90~132	Hydraulic tilt/bottom drop	Steam/hot water
NH - 6000	6000	3600	132~160	Hydraulic tilt/bottom drop	Steam/hot water

Vacuum Sigma Kneader Mixer:

Model	Total Volume(L)	Working Volume(L)	Motor Power (KW)	Discharge way	Heating mode
NHZ - 50	50	30	4 ~ 5.5	Hydraulic tilt	Electric/steam
NHZ - 100	100	60	5.5 ~ 7.5	Hydraulic tilt	Electric/steam
NHZ - 200	200	120	7.5 ~ 11	Hydraulic tilt	Electric/steam
NHZ - 300	300	180	11 ~ 15	Hydraulic tilt/bottom drop	Electric/steam
NHZ - 500	500	300	15 ~ 30	Hydraulic tilt/bottom drop	Electric/steam
NHZ - 1000	1000	600	37 ~ 55	Hydraulic tilt/bottom drop	Electric/steam
NHZ - 1500	1500	900	55	Hydraulic tilt/bottom drop	Electric/steam
NHZ - 2000	2000	1200	75 ~ 90	Hydraulic tilt/bottom drop	Electric/steam
NHZ - 3000	3000	1800	90 ~ 110	Hydraulic tilt/bottom drop	Electric/steam
NHZ - 4000	4000	2400	132 ~ 160	Hydraulic tilt/bottom drop	Electric/steam

Finished Products

Video Technical Support CMC Double Z Blade Sigma Rubber Kneader Mixer

Video Technical Support CMC Double Z Blade Sigma Rubber Kneader Mixer Images
